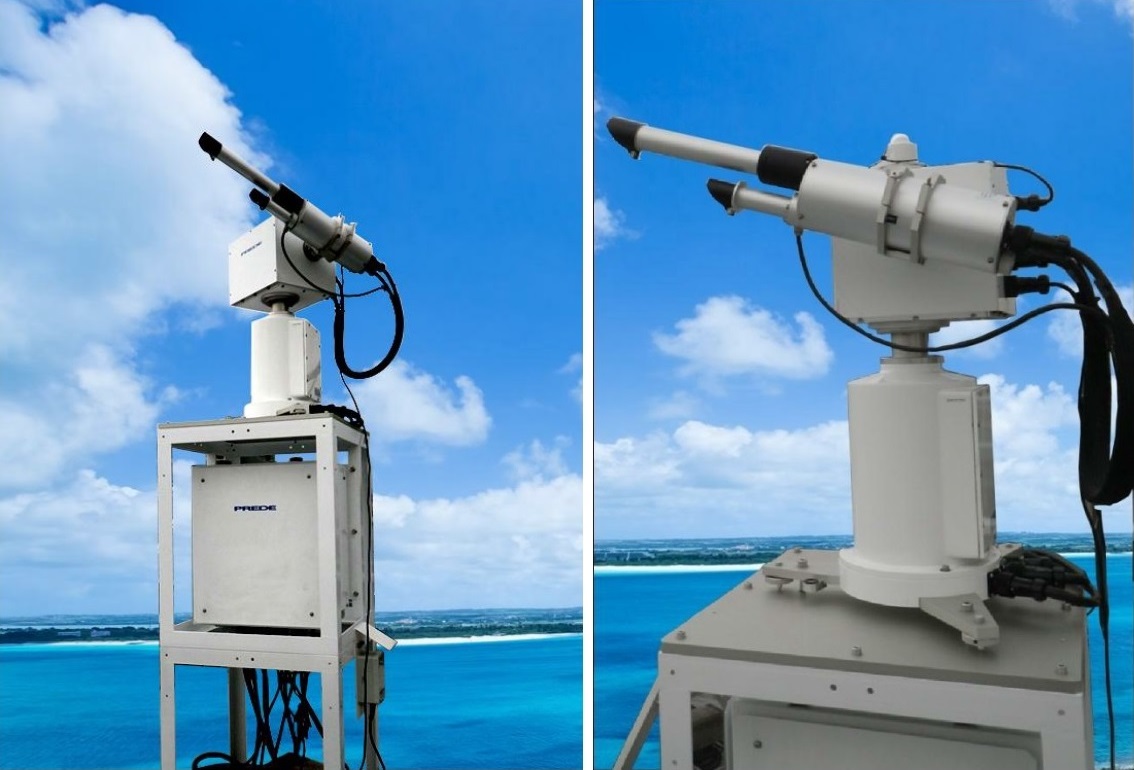

POM-01 Mk-III Shipborn Skyradiometer
POM-01 MK-III Skyradiometer measures circumsolar radiation and spectrum intensity of the direct solar radiation for the research of the size distribution and concentration of the aerosols.
Sensor part is loaded on the sun tracker, and it automatically follows the direction of the sun by the sun sensor.
Measured data are stored to the PC after the process by the micro processor.
This system is specially designed for the observation on the ship.
With the mounted pyranomter, and built-in servo motor, POM-01 MK-III always capture the position of the sun, regardless the direction of the ship.
[Feature]
- Shipborn version of Skyradiometer
- Size distribution and concentration of the aerosols can be measured.
- Operated in all over the world
- Ideal for the combination with LIDAR and Sky View Camera
- Always capture the position of the sun, regardless the direction of the ship.
- Shipborn version of Skyradiometer
- Size distribution and concentration of the aerosols can be measured.
- Operated in all over the world
- Ideal for the combination with LIDAR and Sky View Camera
- Always capture the position of the sun, regardless the direction of the ship.
Specification
| Half Field of View | 0.5 degrees |
| Minimum scattering | 3 degrees |
| Wavelengths | 7 wavelengths: 315, 400, 500, 675, 870, 940, 1020nm |
| Wavelength selection | Filter wheel method |
| Detector | Silicon photodiode |
| Temperature control | 40 deg. C |
| Motor | Pulse motor drive type |
| Operative angle | +/- 310 degree Azimuth -20 degre to +/-150 degree Zenith |
| Position sensor | GPS / Tilt sensor |
| Sun sensor | 4 element silicon sensor |
| PC interface | RS-422 |
| Power consumption | 100 to 240 VAC / 2A |
| Weight | Skyradiometer: 16kg Control box: Approx. 7kg Cable etc: 5kg |
NOTE: For more details, please refer the SKYNET group website.
